BN-LINK 24 Hour Plug-in Mechanical Timer Grounded
Setup: The Basics

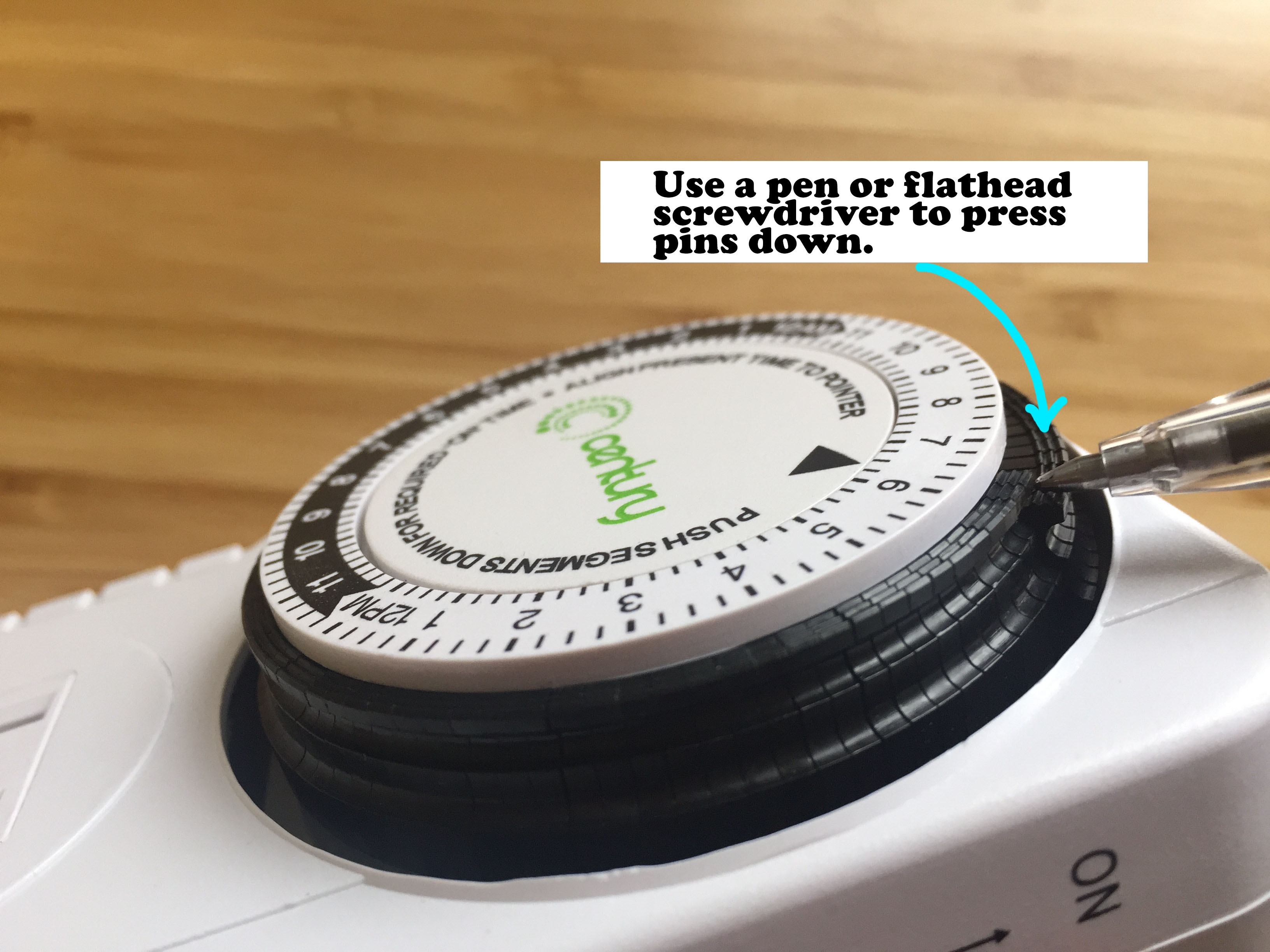

1. Use a pen or similar instrument to press your desired black pins down. Select the range of time you want your timer to turn on.

2. In the above example, the timer will turn on from 7:00pm-10:15pm. Please note how ALL pins between the 7pm mark and 10:15pm mark have been pressed down as well.

3. Set your current time. Turn the dial so that the arrow points to your current time. In the above example, the time is 6:30 pm.
To complete setup, switch the red switch down into TIMER MODE.
